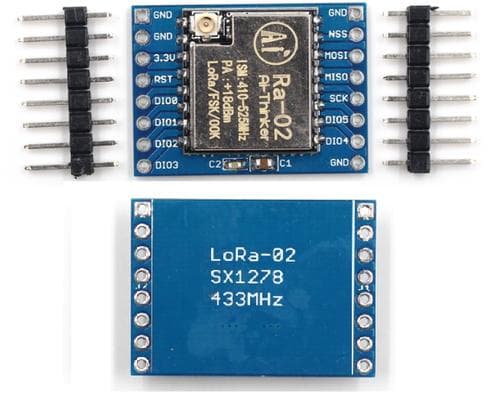

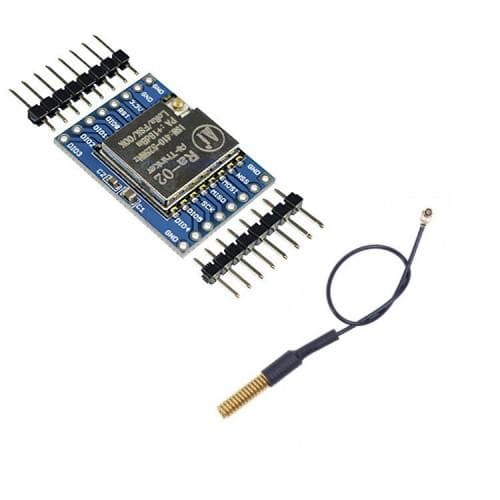

SX1278 RA-02 LoRa 433MHz Wireless Transceiver Module
0·Ai-Thinker Compatible·RS086
The SX1278 RA-02 LoRa Wireless Transceiver Module is a long-range, low-power RF communication module based on the Semtech SX1278 LoRa transceiver. It is designed for wireless communication between microcontrollers over considerably longer distances than typical short-range modules. The module communicates with Arduino, ESP32, STM32 and other microcontrollers through SPI and is suitable for IoT, environmental monitoring, agriculture, robotics telemetry, remote sensors, smart automation and long-range data communication.
₹249₹399-38%
59 in stock
Delivery₹49
Estimated time3–5 business days
Technical specs
| Module Type | LoRa Wireless Transceiver |
| RF Chip | SX1278 |
| Frequency | 433MHz |
| Modulation | LoRa / FSK / GFSK |
| Interface | SPI |
| Operating Voltage | 1.8–3.7V |
| Recommended Voltage | 3.3V |
| Transmit Power | Up to +20dBm* |
| Sensitivity | Up to -148dBm* |
| Communication Range | Up to Several Kilometres* |
| Antenna | External Antenna Required |
| Data Rate | Up to ~37.5kbps* |
| Logic Level | 3.3V |
| Low Power | Yes |
| Applications | IoT, Robotics, Telemetry, Agriculture, Remote Sensors |
| Compatible Boards | Arduino, ESP32, STM32, Raspberry Pi |
