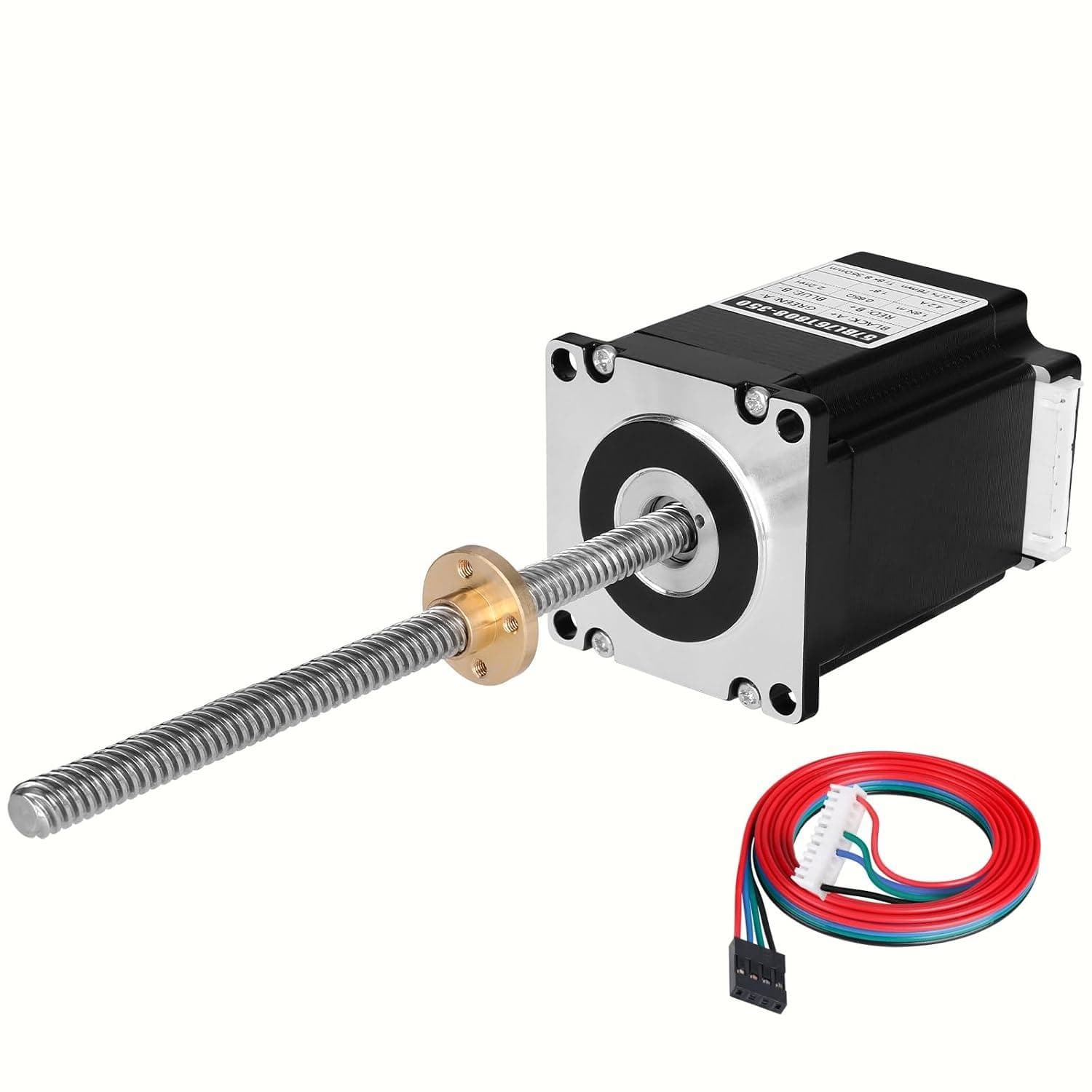

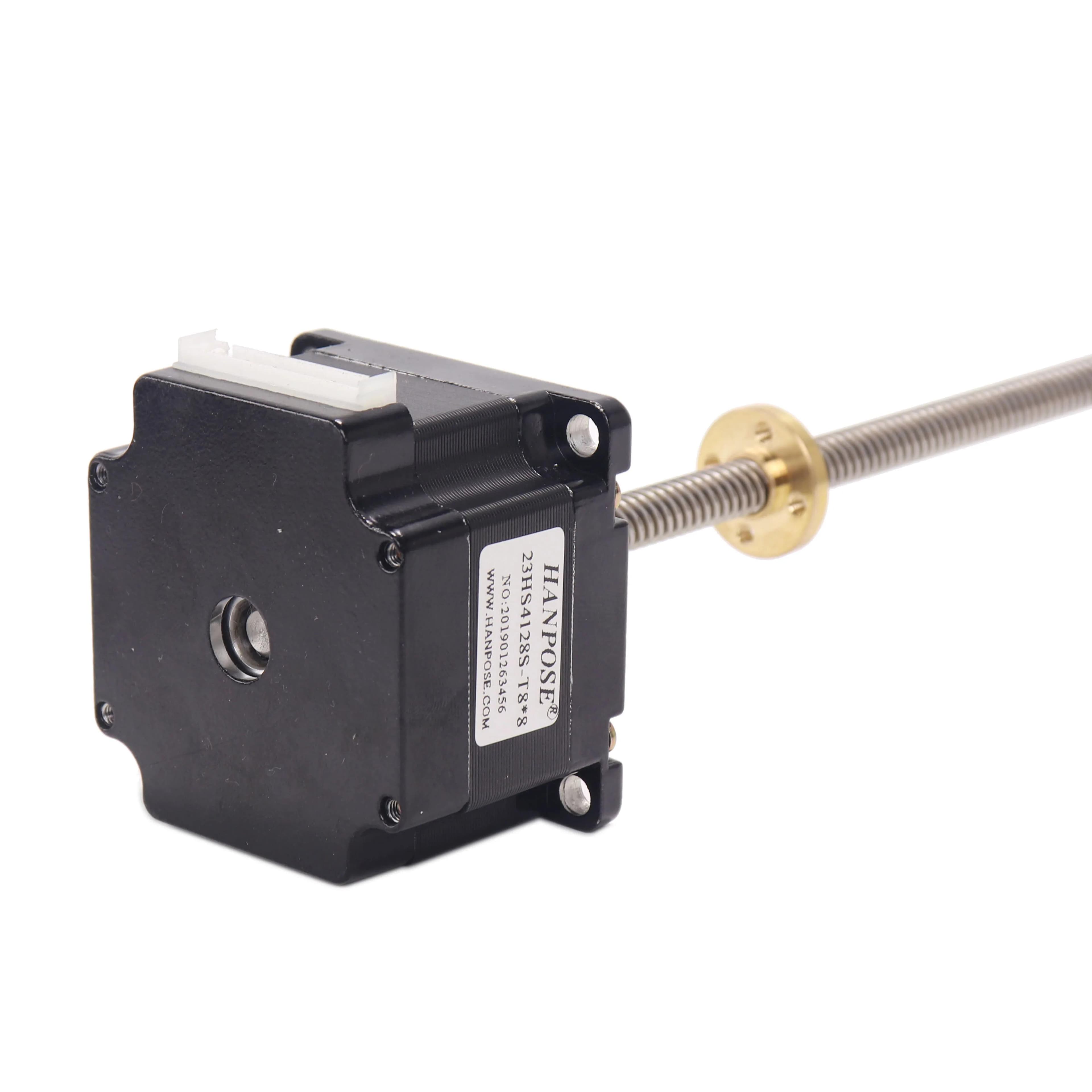

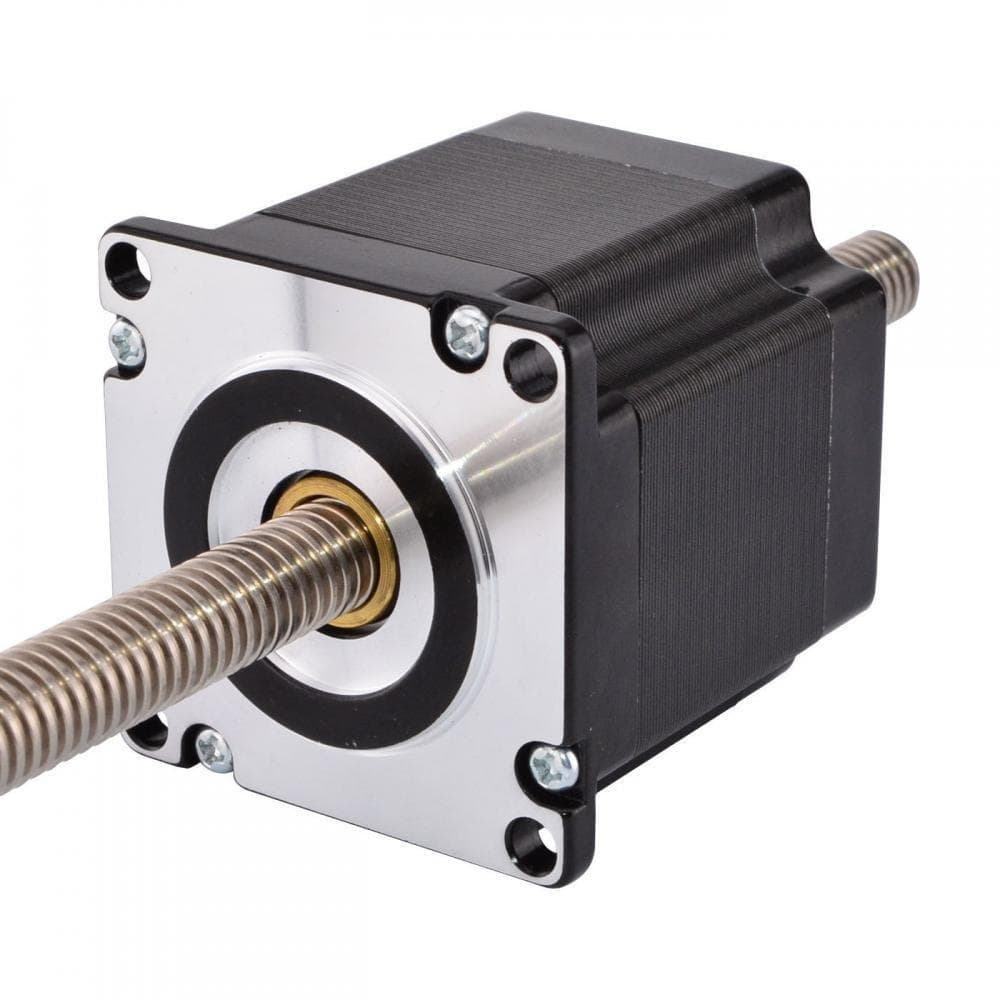

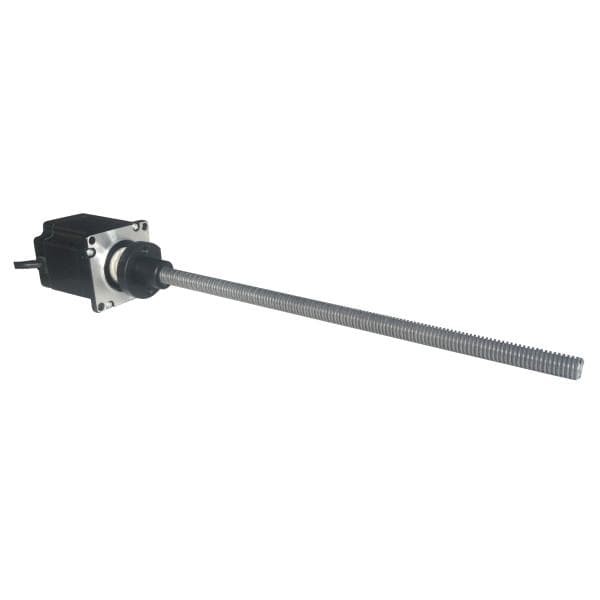

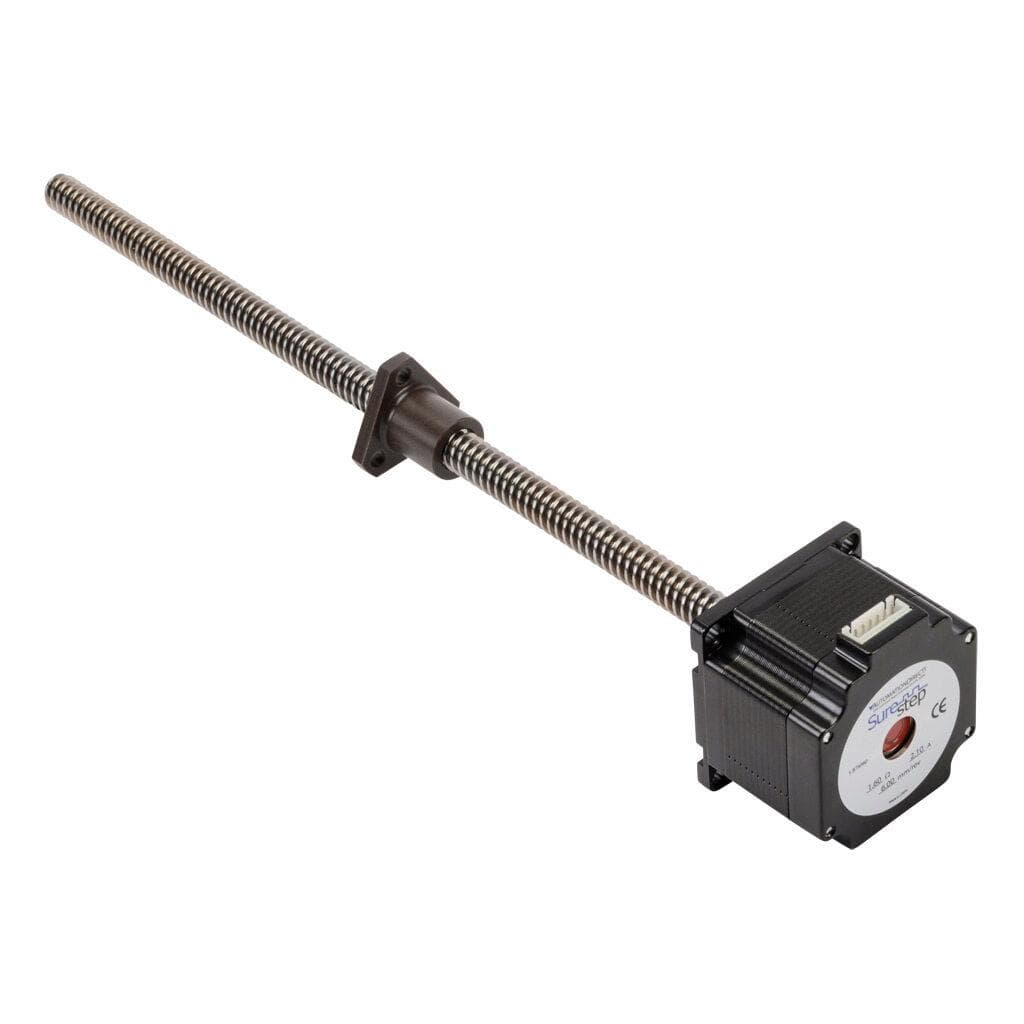

NEMA 23 Linear Stepper Motor with 300mm T8 Lead Screw

The NEMA 23 Linear Stepper Motor with 300mm T8 Lead Screw combines a high-torque NEMA 23 stepper motor with an integrated lead screw to convert rotary motion into precise linear movement. It is suitable for CNC machines, 3D printers, linear axes, automation equipment, robotic mechanisms and positioning systems. A representative 57mm NEMA 23 linear actuator configuration uses a 1.8° step angle, 57×57mm frame, 8mm lead screw diameter and 300mm screw length. Wire colours are not standardized across NEMA 23 motors. Use the supplied wiring diagram or identify coil pairs with a multimeter. Compatible Drivers - TB6600 - DM542 - DM556 - Other high-current bipolar stepper drivers For larger NEMA 23 motors, TB6600-class drivers are generally more appropriate than A4988 modules when the motor's rated current exceeds the smaller driver's capability. Applications - CNC Machines - 3D Printers - CNC Routers - Linear Actuators - Z-Axis Systems - Robotic Mechanisms - Automation Systems - Pick-and-Place Machines - Linear Positioning - Engineering Projects
