Power Modules
MT3608 2A Adjustable DC-DC Boost Converter Module
0·Generic / Compatible·RS078
The MT3608 2A Adjustable DC-DC Boost Converter Module is a compact step-up voltage converter designed to increase a lower DC voltage to a higher adjustable voltage. It is commonly used to boost 3.7V Li-ion batteries to 5V, 9V or 12V, and for Arduino, ESP32, LED, sensor and portable electronics projects. Typical modules support 2–24V input and an adjustable output up to approximately 28V.
₹49₹79-38%
78 in stock
Delivery₹49
Estimated time3–5 business days
Technical specs
| Model | MT3608 |
| Type | DC-DC Boost / Step-Up Converter |
| Input Voltage | 2–24V DC |
| Output Voltage | 5–28V DC* |
| Maximum Output Current | 2A Peak* |
| Typical Efficiency | Up to ~93% |
| Switching Frequency | 1.2MHz |

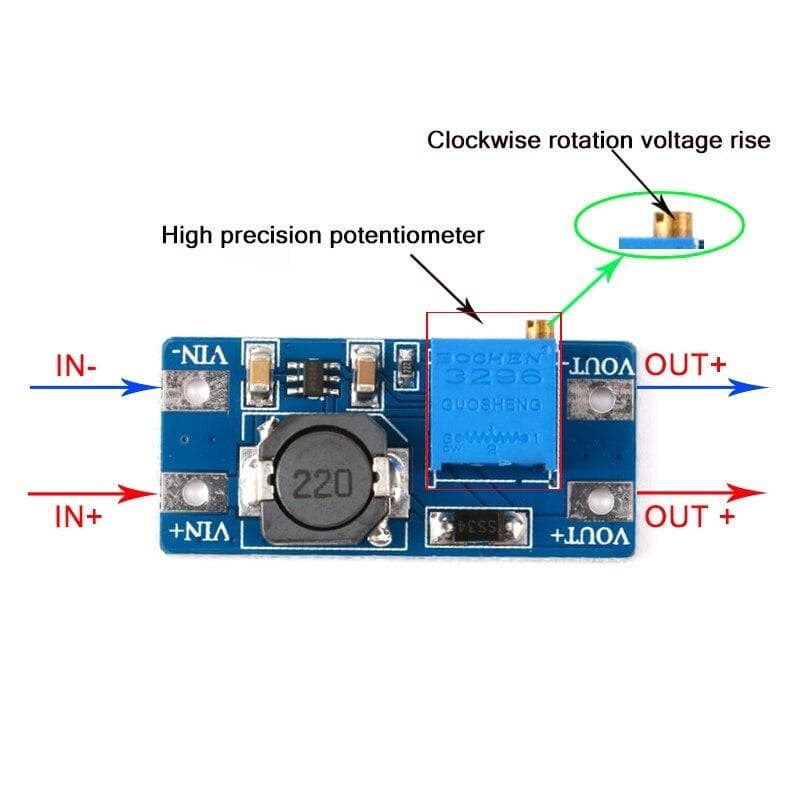

| Adjustment | Multi-Turn Potentiometer |
| Module Type | Non-Isolated |
| Input | VIN+ / VIN- |
| Output | VOUT+ / VOUT- |
| Dimensions | Approx. 36 × 17 × 14mm* |
