Power Modules

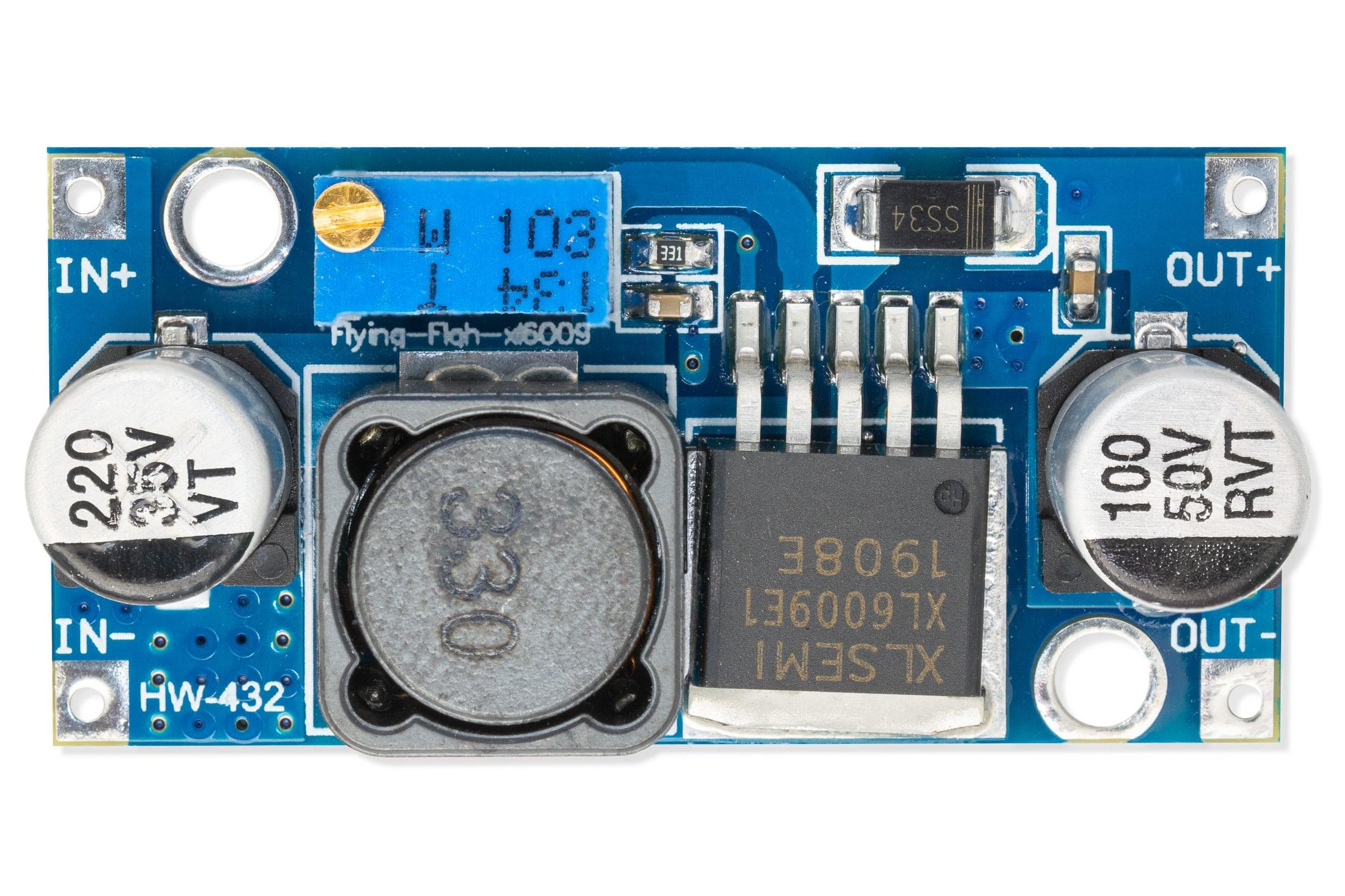

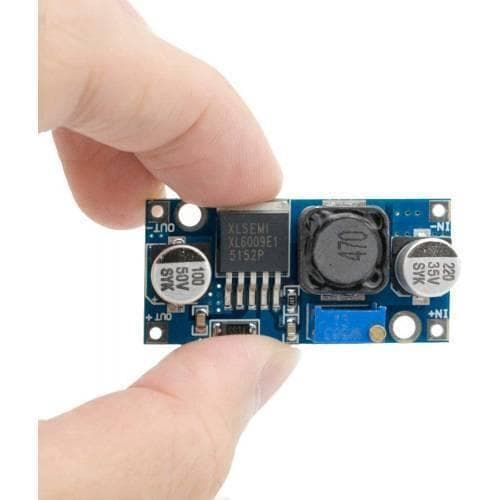

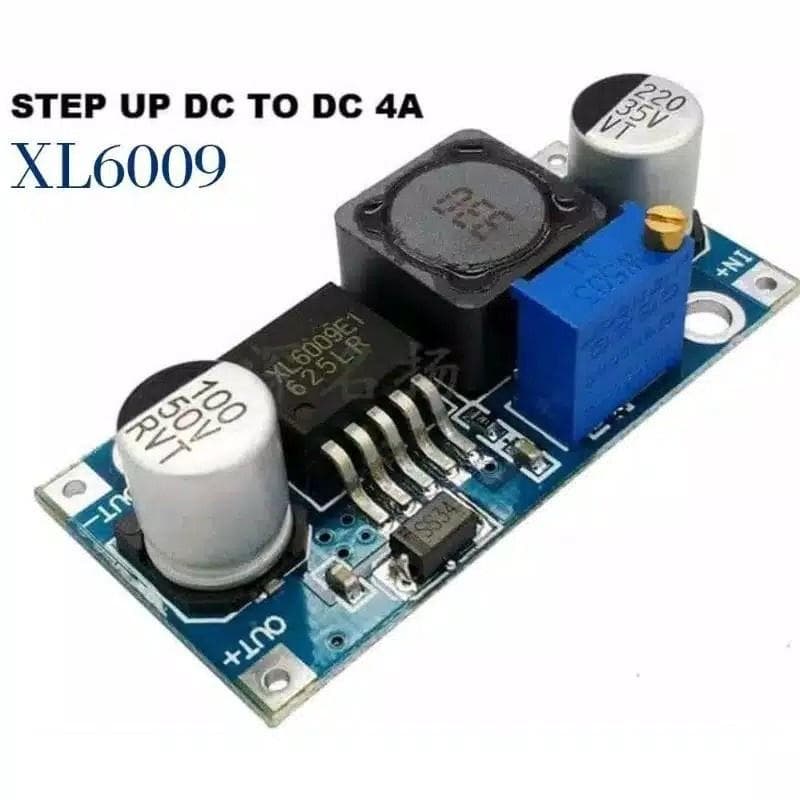

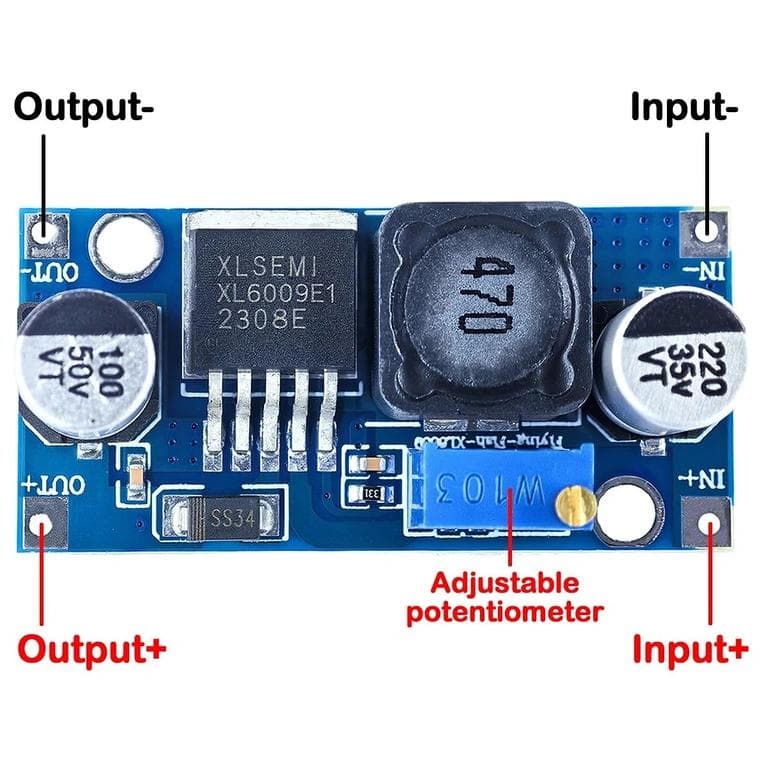

XL6009 4A Adjustable DC-DC Boost Converter Module
0·Generic / Compatible·RS079
The XL6009 4A Adjustable DC-DC Boost Converter Module is a compact, non-isolated step-up converter designed to increase a lower DC voltage to a higher adjustable voltage. It uses the XL6009E1 switching regulator and operates at approximately 400kHz. Common modules accept 3–32V DC input and provide an adjustable 5–35V output.
₹69₹99-30%
78 in stock
Delivery₹49
Estimated time3–5 business days
Technical specs
| Model | XL6009 |
| Type | DC-DC Boost / Step-Up Converter |
| Input Voltage | 3–32V DC |
| Recommended Input | 5–32V DC |
| Output Voltage | 5–35V DC |
| Maximum Input Current | 4A |
| Efficiency | Up to ~94% |
| Switching Frequency | 400kHz |
| Output Ripple | ~50mV* |
| Load Regulation | ±0.5% |
| Voltage Regulation | ±0.5% |
| Operating Temperature | -40°C to +85°C |
| Module Type | Non-Isolated |
| Dimensions | Approx. 43 × 21 × 14mm |
